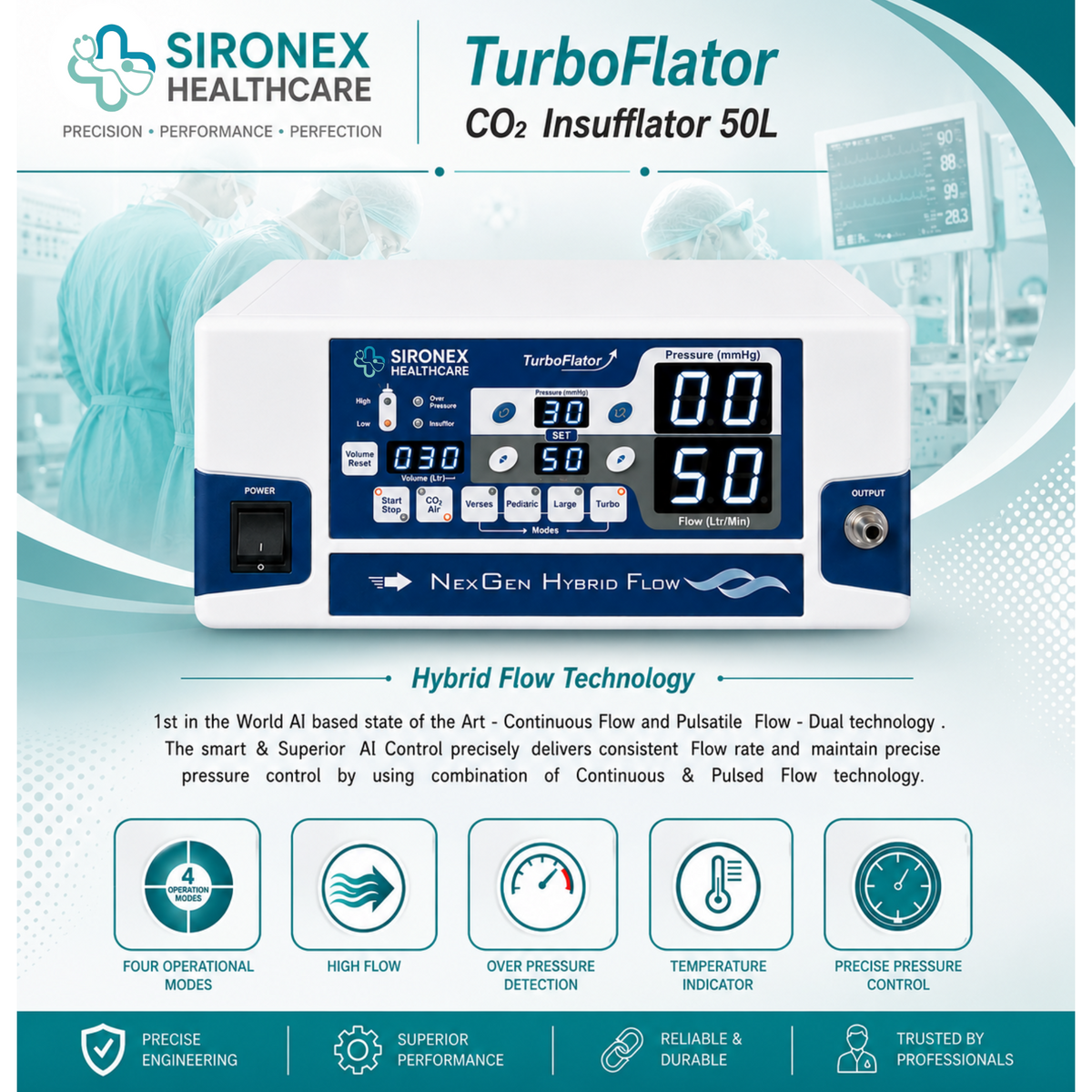

SIRONEX TurboFlator 50L CO₂ Insufflator

The SIRONEX TurboFlator 50L CO₂ Insufflator is designed for controlled and precise CO₂ delivery in minimally invasive surgical procedures. The system provides multiple operating modes and adjustable pressure and flow settings to accommodate different procedural requirements.

The insufflator supports Veress Mode, Pediatric Mode, Laparoscopy Mode and Turbo Mode. Depending on the selected mode, pressure can be set from 3 to 30 mmHg, while flow can be adjusted from 1 to 30 LPM, with Turbo Mode providing a maximum flow specification of 50 L/min.

The system incorporates precise pressure control, high-flow operation, over-pressure detection and temperature indication. It also provides audio indication, heater indication and an over-pressure indicator.

Key Features

• 50 L CO₂ insufflation system
• Medical-grade CO₂ compatible
• Four operational modes
• Veress Mode
• Pediatric Mode
• Laparoscopy Mode
• Turbo Mode
• High-flow insufflation
• Precise pressure control
• Over-pressure detection
• Temperature indication
• Audio indicator
• Heater indicator
• Touch control panel
• High-brightness seven-segment display
• Adjustable flow and pressure settings
• Cylinder / central gas supply connection option
• Hybrid Flow Technology
• Continuous and pulsatile flow technology
• Designed for minimally invasive surgical applications

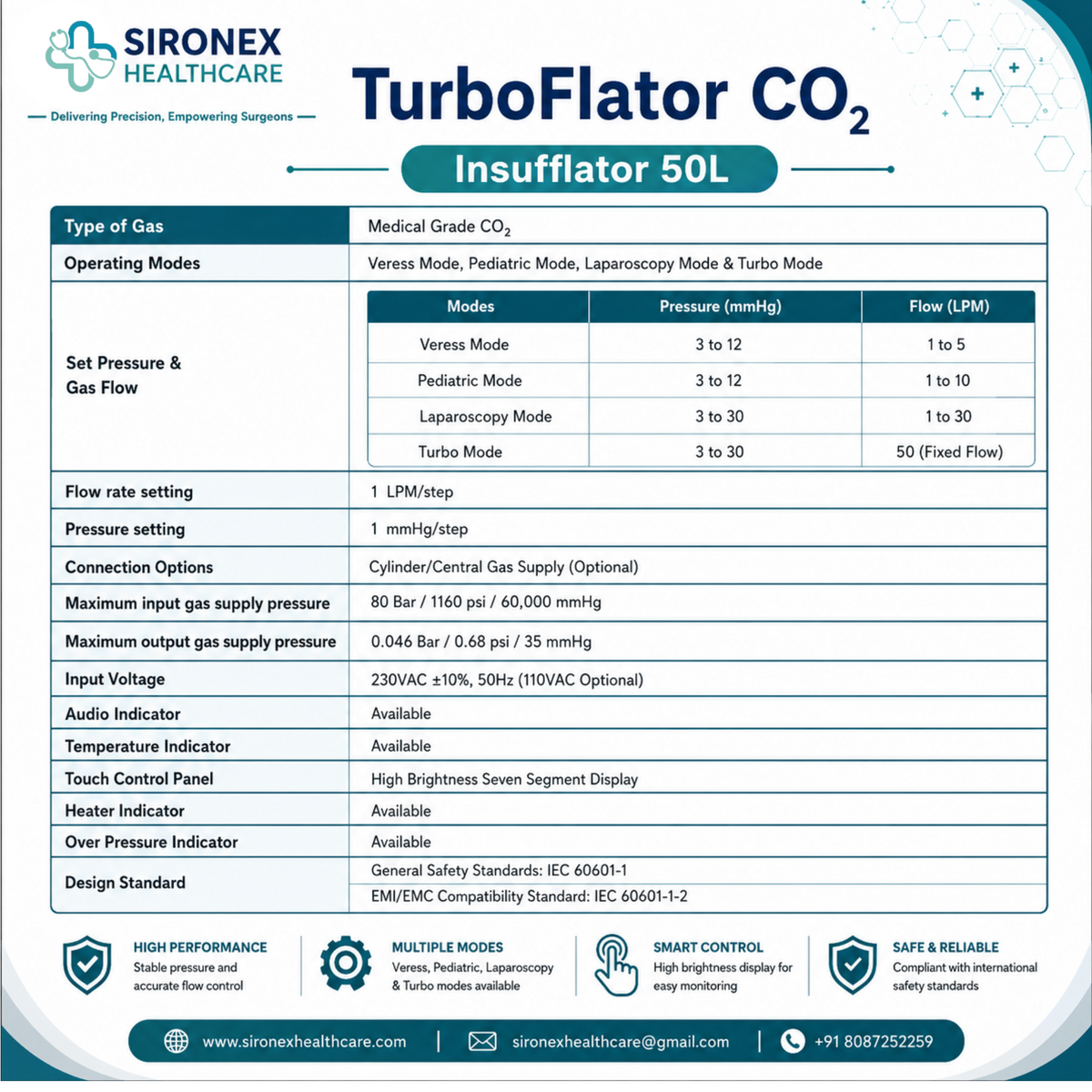

Operating Modes

Veress Mode

Pressure: 3–12 mmHg
Flow: 1–5 LPM

Pediatric Mode

Pressure: 3–12 mmHg
Flow: 1–10 LPM

Laparoscopy Mode

Pressure: 3–30 mmHg
Flow: 1–30 LPM

Turbo Mode

Pressure: 3–30 mmHg
Flow: Up to 50 L/min

Safety & Control Features

• Precise pressure control
• Over-pressure detection
• Over-pressure indicator
• Temperature indication
• Heater indication
• Audio indication
• Adjustable pressure settings
• Adjustable flow settings
• IEC 60601-1 safety standard
• IEC 60601-1-2 EMI/EMC compatibility standard

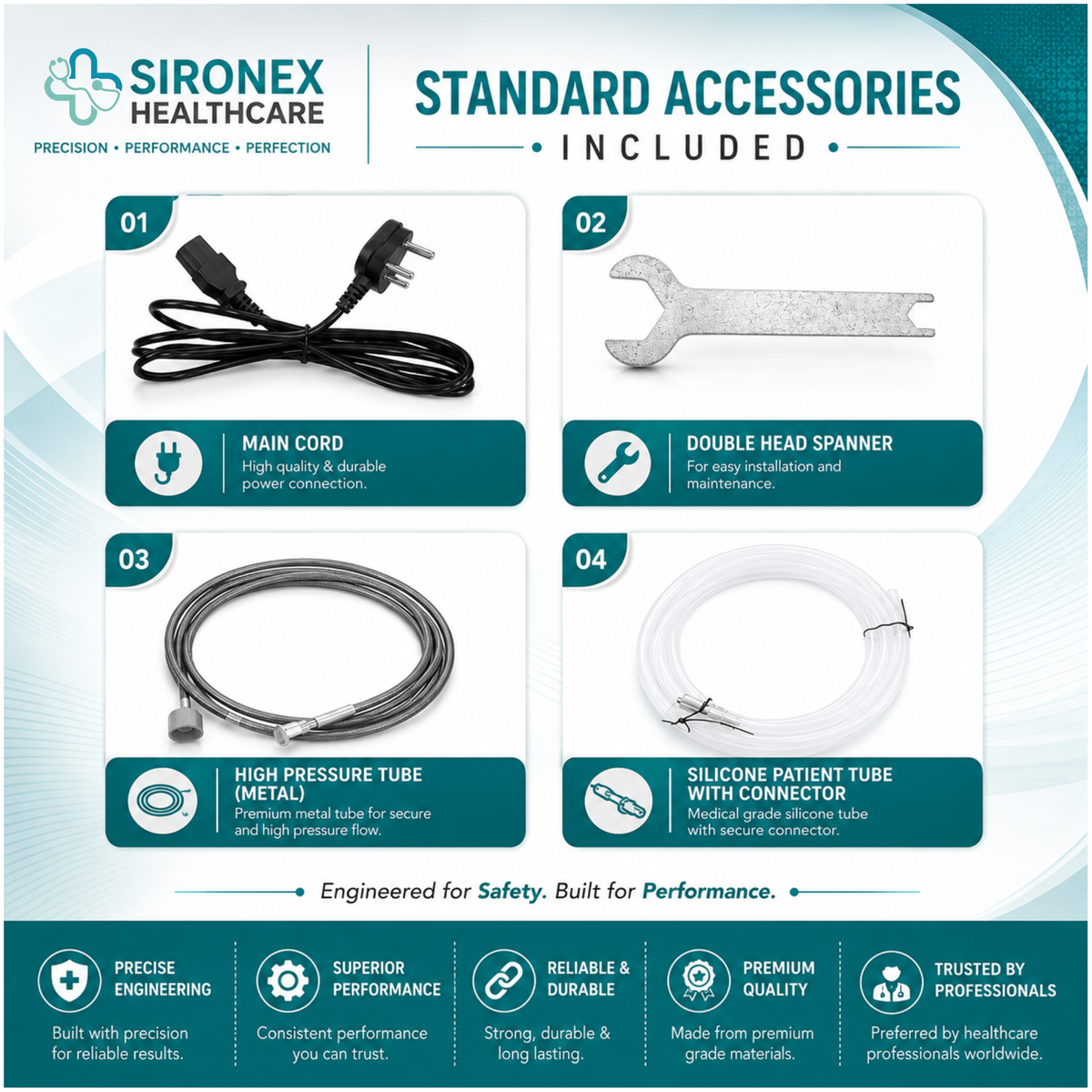

Accessories

The catalogue illustrates the following accessories:

• Hose Pipe
• Silicon Tube
• Adjustable Spanner
• Mains Cord

Warranty

1 Year Manufacturing Warranty

Warranty Coverage: Manufacturing defects under normal intended use.

Not Covered: Damage resulting from misuse, unauthorized modification, improper installation, physical damage, unsuitable gas supply, or use outside recommended operating conditions.
