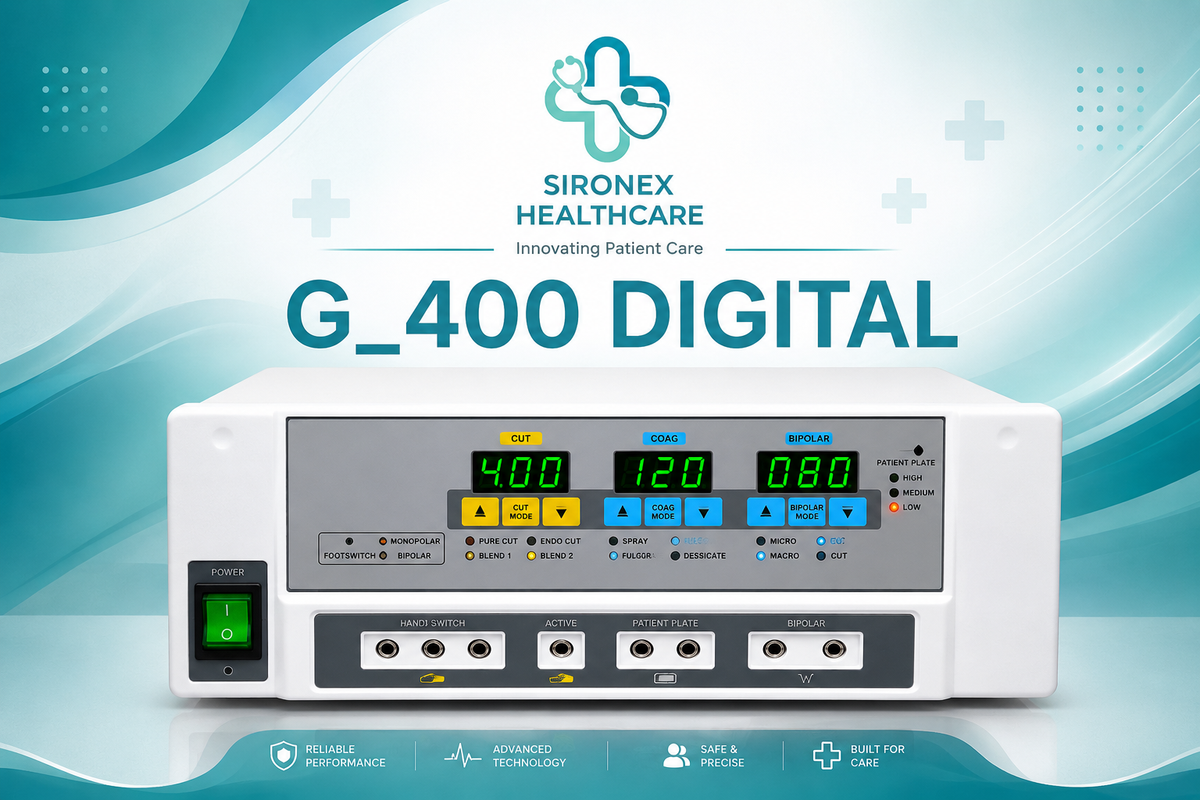

SIRONEX G 400 Digi 400W Electrosurgical Unit

The SIRONEX G 400 Digi is a versatile 400W electrosurgical unit designed for electrosurgical cutting and coagulation applications. The system operates at a 480 kHz frequency and supports both monopolar and bipolar modes, providing multiple operating options according to procedural requirements.

The monopolar section provides multiple modes including Pure Cut, Blend 1, Blend 2, Endocut, Spray, Fulgurate and Desiccate. The unit provides a maximum rated output of 400W in Pure Cut mode, with additional power levels specified for the different operating modes.

For bipolar applications, the G 400 Digi provides Bi-Cut, Bi-Coag Micro and Bi-Coag Macro modes, each specified at up to 120W in the supplied technical specification.

The unit also incorporates a tissue response circuit and patient plate monitoring system, providing additional monitoring functions during electrosurgical operation.

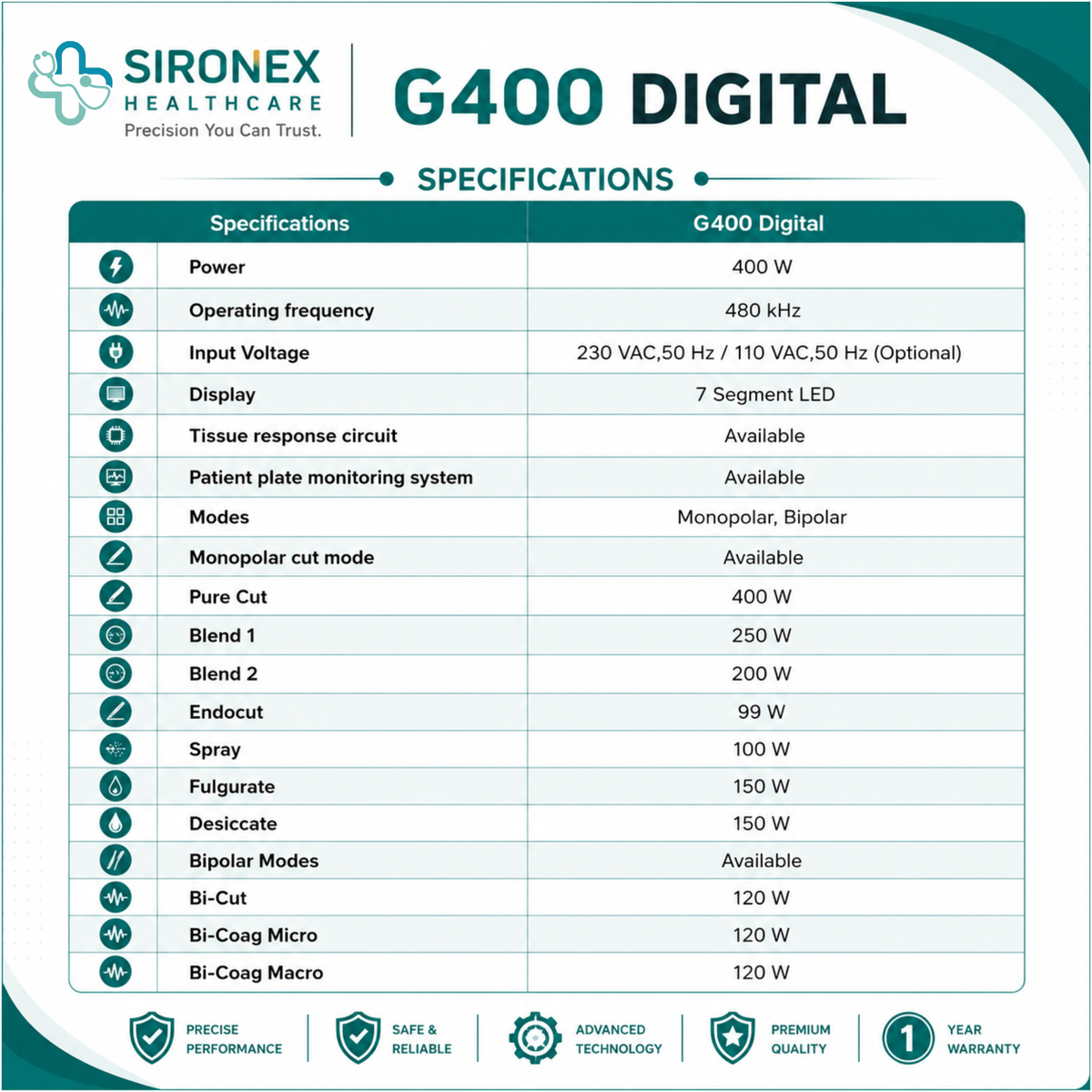

Key Features

• 400W maximum power
• 480 kHz operating frequency
• Monopolar and bipolar operation
• Multiple monopolar cutting and coagulation modes
• Pure Cut up to 400W
• Blend 1 up to 250W
• Blend 2 up to 200W
• Endocut up to 99W
• Spray up to 100W
• Fulgurate up to 150W
• Desiccate up to 150W
• Bi-Cut up to 120W
• Bi-Coag Micro up to 120W
• Bi-Coag Macro up to 120W
• Tissue response circuit
• Patient plate monitoring system
• 7-segment LED display
• 230 VAC / 50 Hz input
• 110 VAC / 50 Hz optional configuration

Monopolar Modes

Pure Cut

Maximum power: 400W

Blend 1

Maximum power: 250W

Blend 2

Maximum power: 200W

Endocut

Maximum power: 99W

Spray

Maximum power: 100W

Fulgurate

Maximum power: 150W

Desiccate

Maximum power: 150W

Bipolar Modes

Bi-Cut

Maximum power: 120W

Bi-Coag Micro

Maximum power: 120W

Bi-Coag Macro

Maximum power: 120W

Monitoring & Control Features

• Tissue Response Circuit: Available
• Patient Plate Monitoring System: Available
• 7-Segment LED Display
• Monopolar Operation
• Bipolar Operation

Applications

The SIRONEX G 400 Digi is an electrosurgical unit intended for procedures requiring electrosurgical cutting and coagulation functions.

Its combination of monopolar and bipolar modes allows configuration for different electrosurgical operating requirements. The exact clinical application should be determined by the healthcare professional and the compatible accessories used with the system.

INTERNATIONAL BUYERS

Before purchasing, international buyers should confirm:

• Required operating voltage
• Available electrical supply
• Required accessories
• Local medical-device requirements
• Import regulations
• Customs requirements

Import duties, taxes, VAT/GST and customs charges may apply depending on the destination country and are generally the buyer's responsibility.

Warranty

2 Year Manufacturing Warranty

Covered: Manufacturing defects under normal intended use.

Not Covered: Damage caused by misuse, unauthorized modification, improper installation, physical damage, incorrect electrical supply or use outside the recommended operating conditions.
